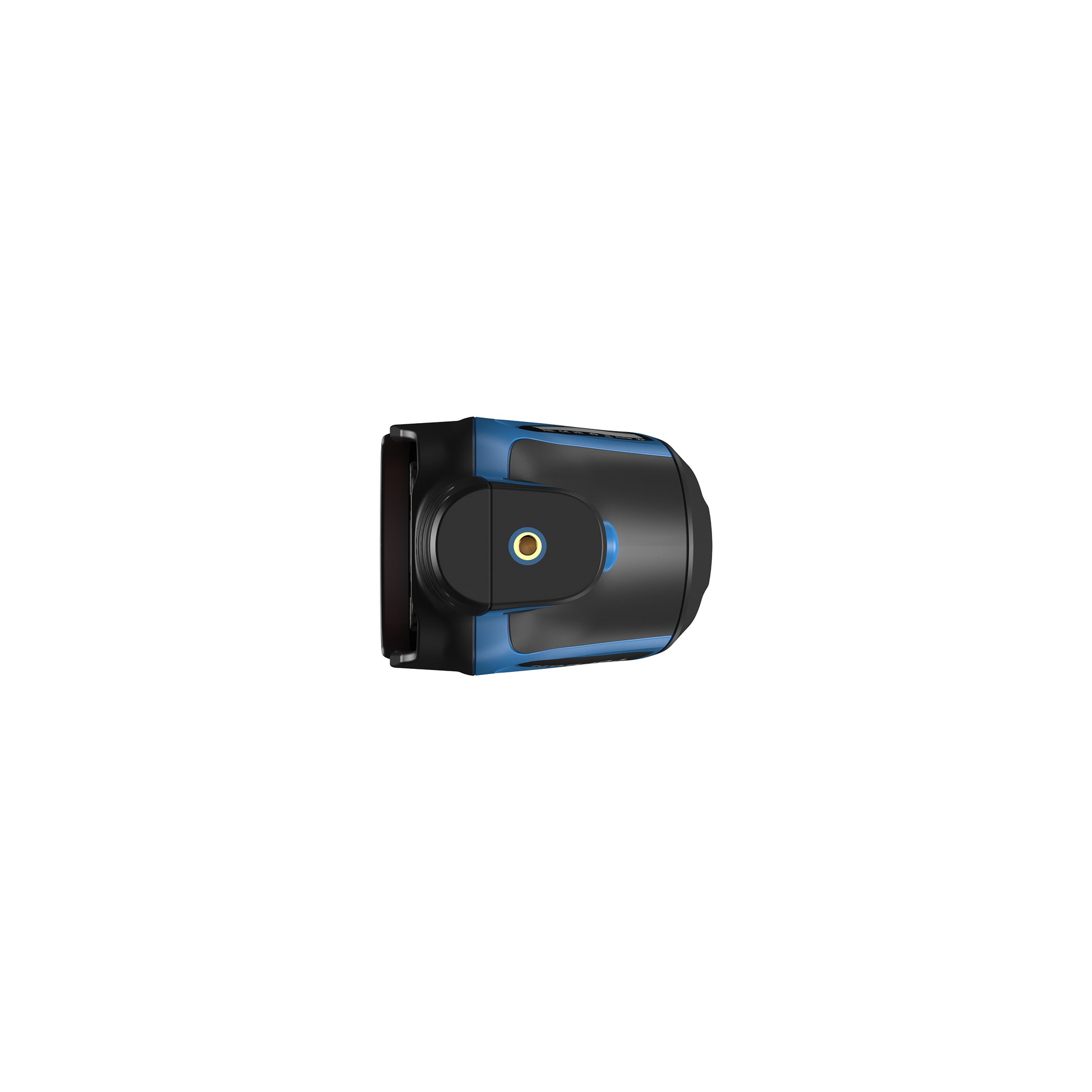

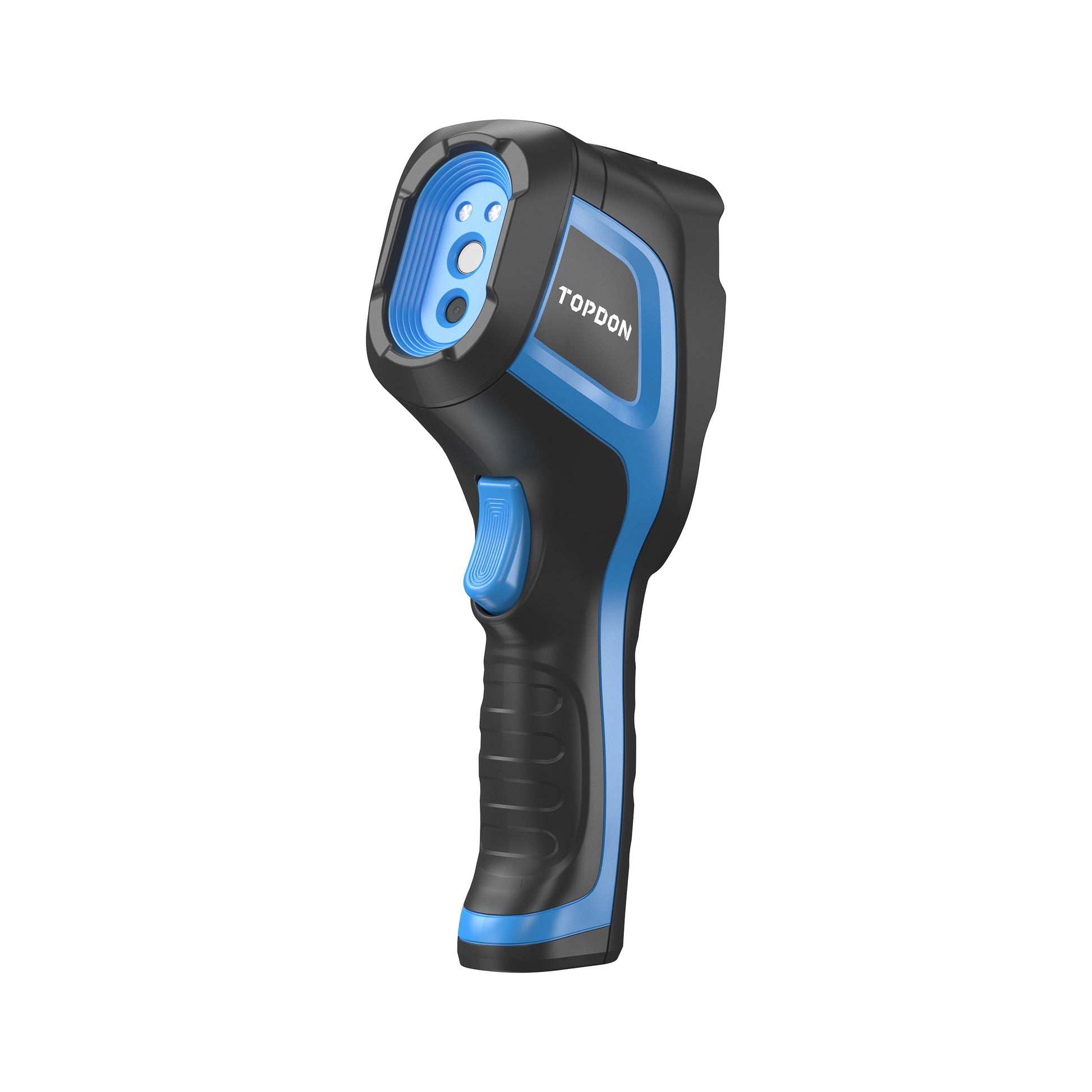

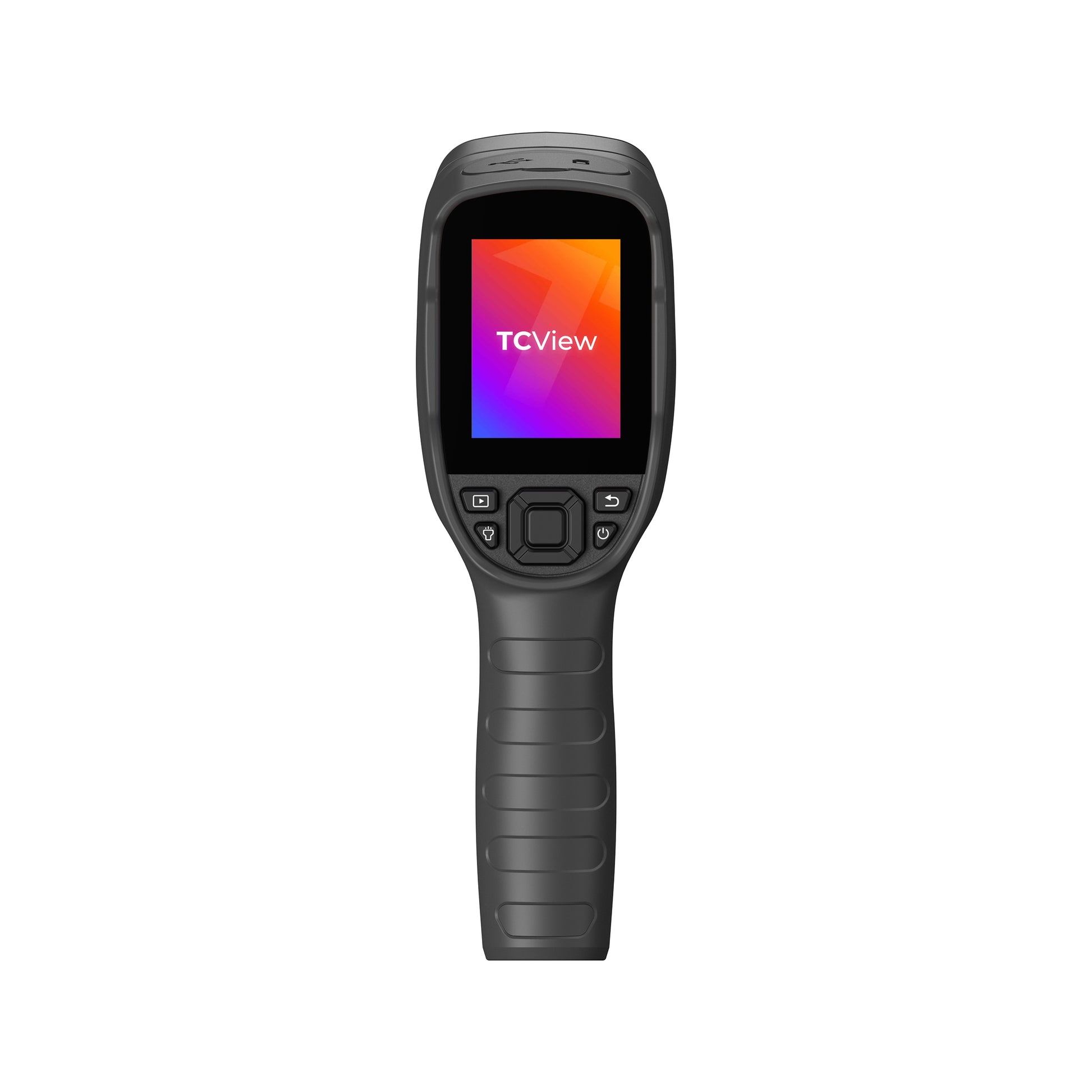

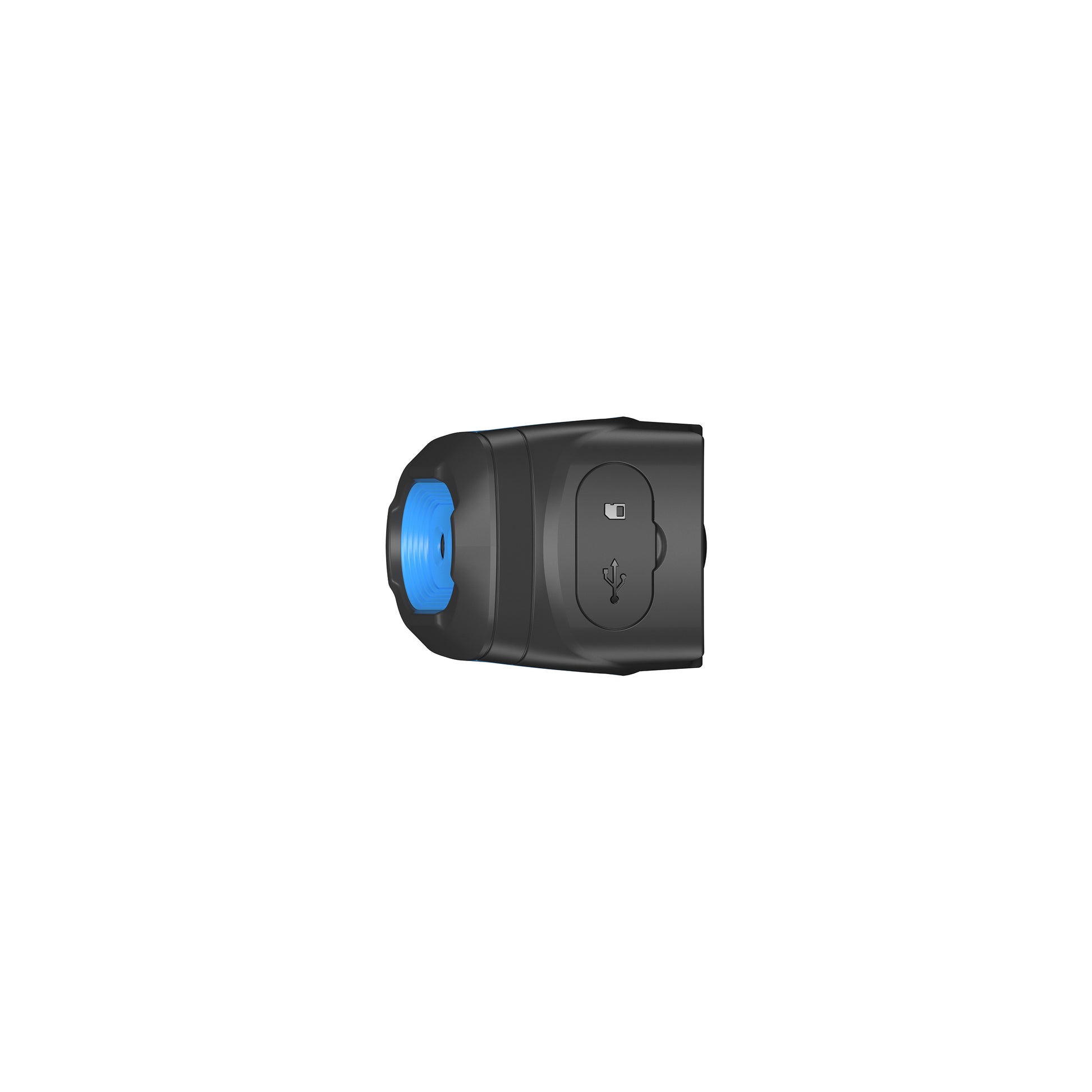

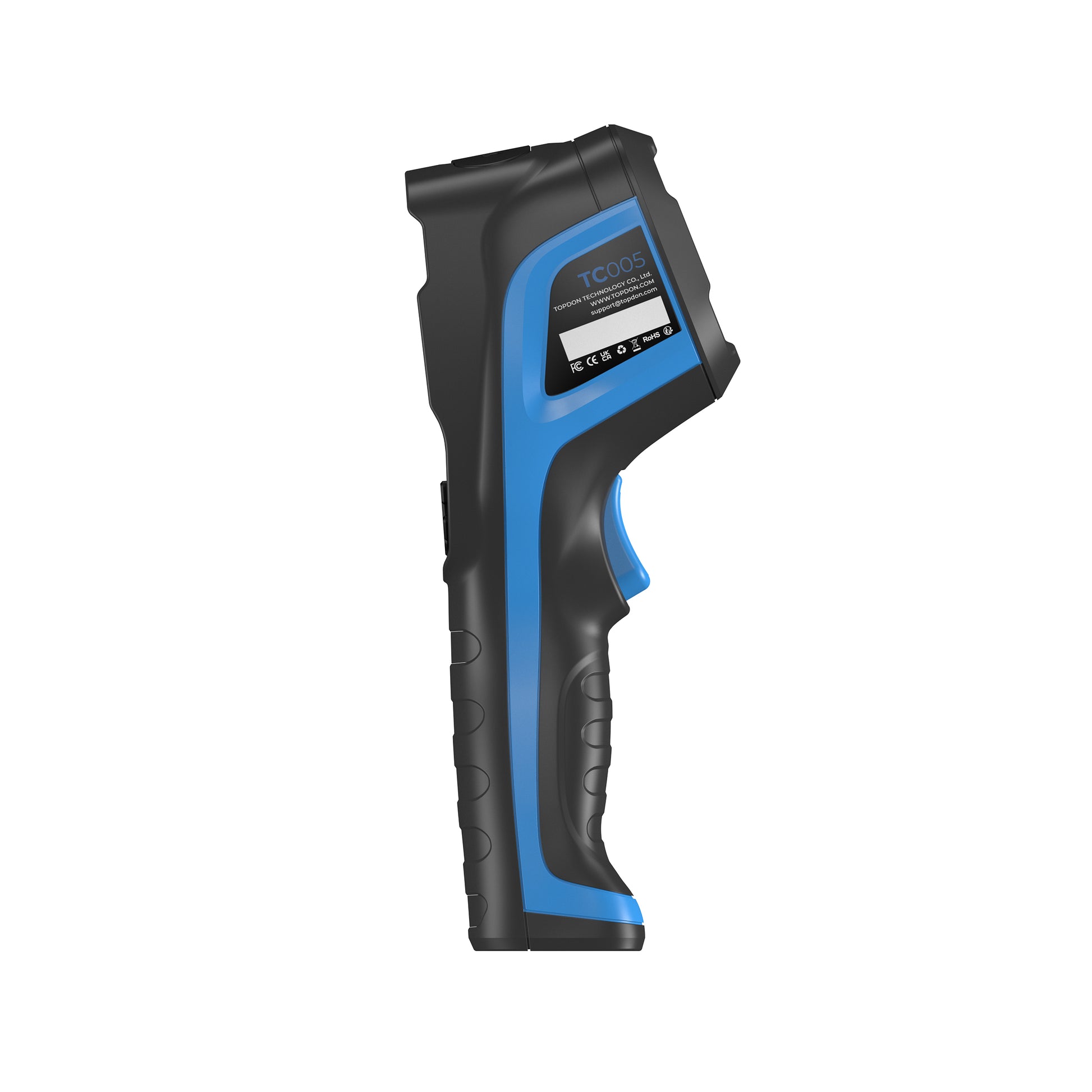

TOPDON Handheld Thermal Imaging Camera, Dual Camera, High Temp Range

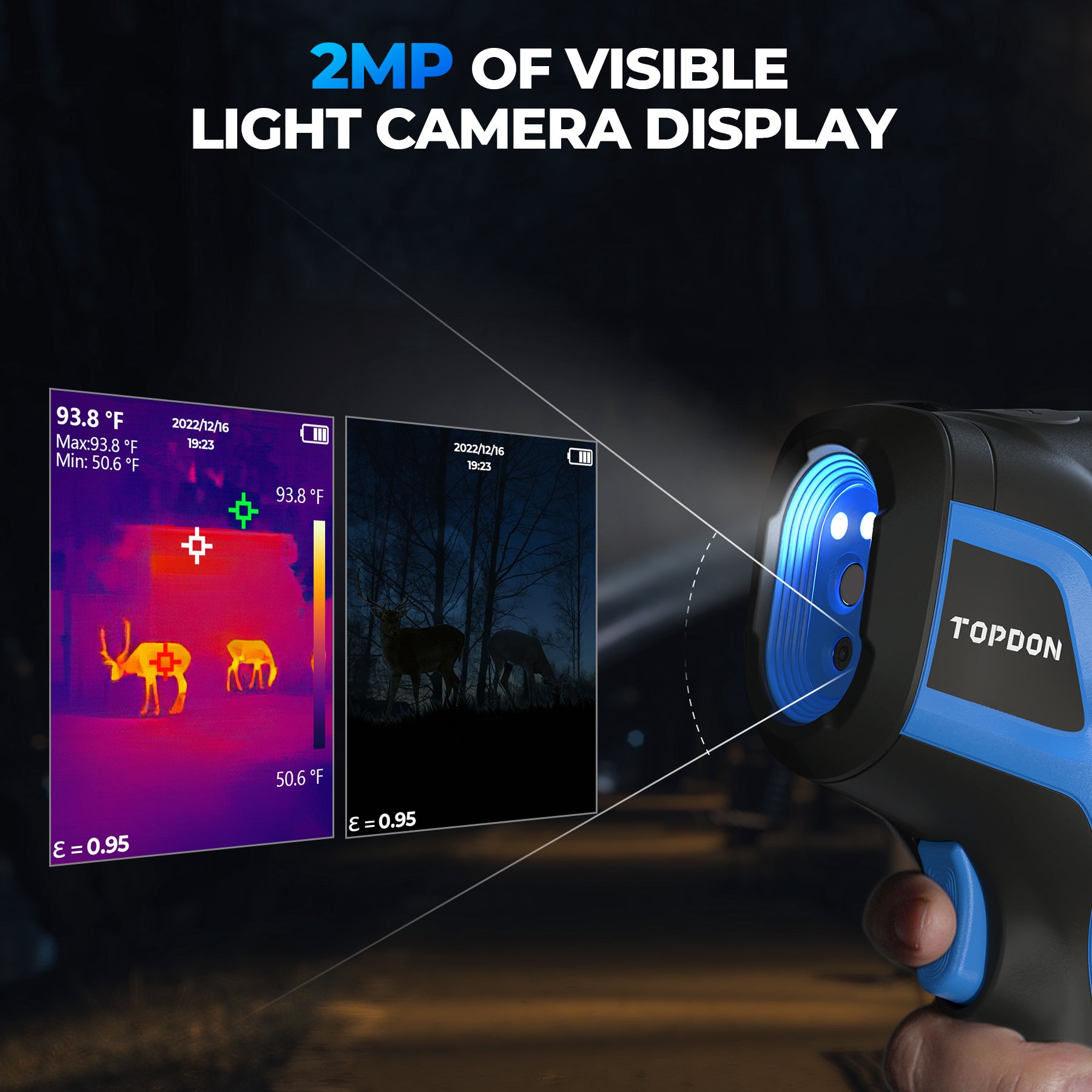

The TC005 is a handheld thermal camera that measures an expansive temperature range. From -20°C to 550°C (-4°F to +1022°F), and offers a 12-hour runtime. The high-resolution 256*192 pixel infrared camera allows you to say goodbye to blurry images. The tool is ready for analysis with the standalone and the PC modes, enabling users to project and upload images from the TC to their PC. Added benefits of the TC005 include seven options for Pseudo-Color Display, a 2-megapixel visible light camera for overlapping images, and a picture-in-picture mode.

Warranty: 1 Year

Working Temperature Fahrenheit: 14°F to 122°F
Working Temperature Celsius: -10 to 50℃
Storage Temperature Fahrenheit: 14°F to 131°F
Storage Temperature Celsius: -10 to 55℃
Spectral Range: 8 – 14μm
Product Width (inches): 11.81
Product Weight (lbs): 1.15
Product Length (inches): 9.33
Product Height (inches): 3.54
Object Temperature Range Feherheit: -4°F to 1022°F
Object Temperature Range Celsius: 20 to 550℃
IR Resoltuion: 256 x 192 Pixels
IP Rating: IP54
Heat Sensitivity: 40mk
Focal Length: 0.12 in. (3.2 mm)
Drop Rating: 2m
Display Size: 2.8 Inch

Feature & Benefit 01
High Resolution & Thermal Sensitivity

The TC005 features a high-resolution thermal camera with a resolution of 256x192.This allows users to capture more details and say goodbye to blurry images.
A high thermal sensitivity of 0.05℃ allows the TC005 to distinguish between tiny temperature differences.

Feature & Benefit 02
Three Measurement Modes & Auto-Detection

The TC005 has three different measurements to detect center, hot and cold spots.

The automatic detection feature allows users view temperature differences more visually.

Feature & Benefit 03
Wide FOV

The TC005 also features a wide 56° FOV to easily capture more objects in view. There is also no need to adjust focal length.

Feature & Benefit 04
Wide Measurement Range & Accuracy

The TC005 features a wide temperature measurement range of -20℃ - +550℃. It can also measure temperatures with ±2℃ accuracy for precise temperature measurements.

NETD of this high-precision infrared sensor is less than 40mK, measurement accuracy is 0.1 degree, and error is less than 2%. This is to ensure the upmost accurate thermal readings.

Feature & Benefit 05

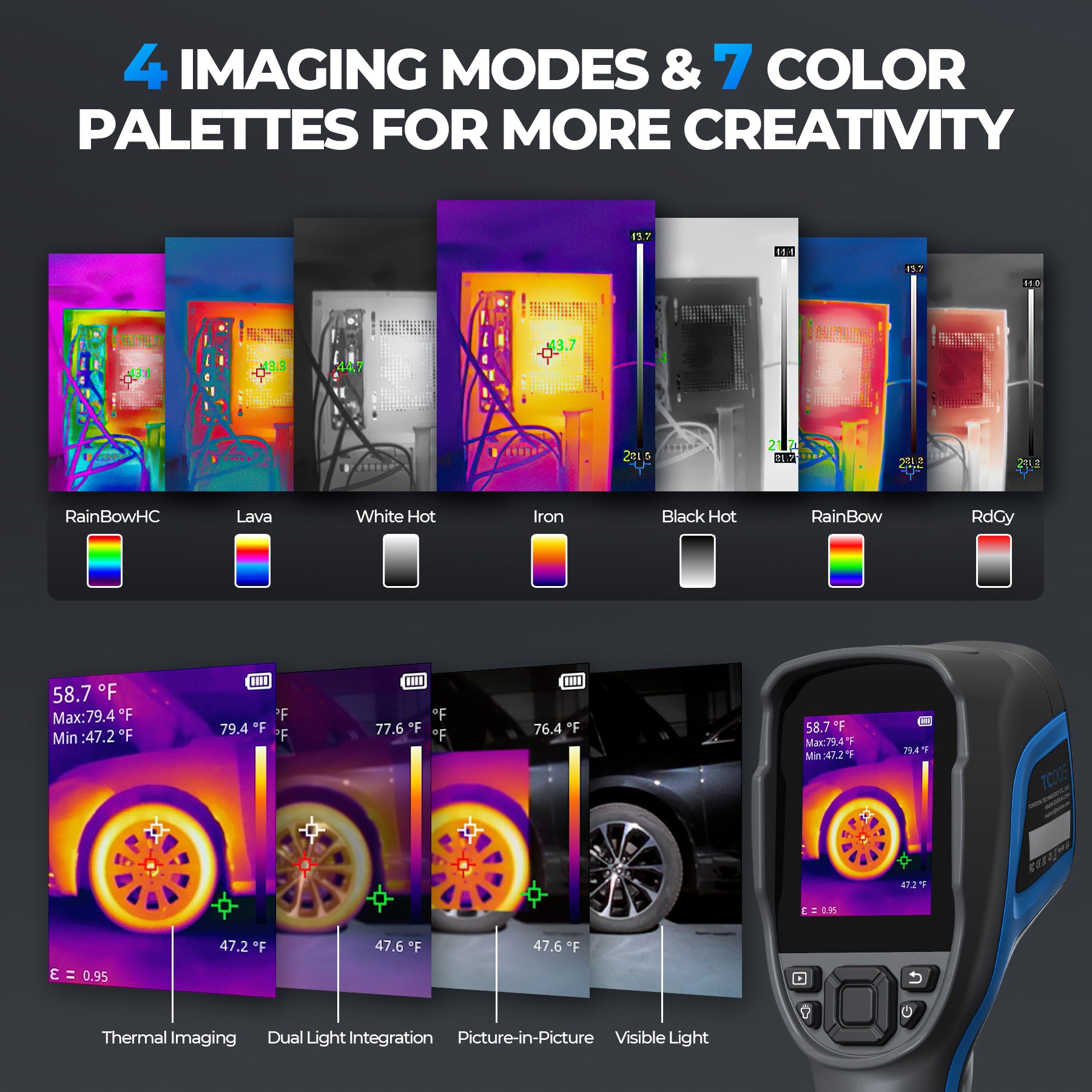

Four Imaging Modes

The TC005 has four imaging modes to identify target in a timely manner.

These include: Thermal Imaging mode, Dual Light mode, Visible Light mode, and Image in Image mode.

Feature & Benefit 06

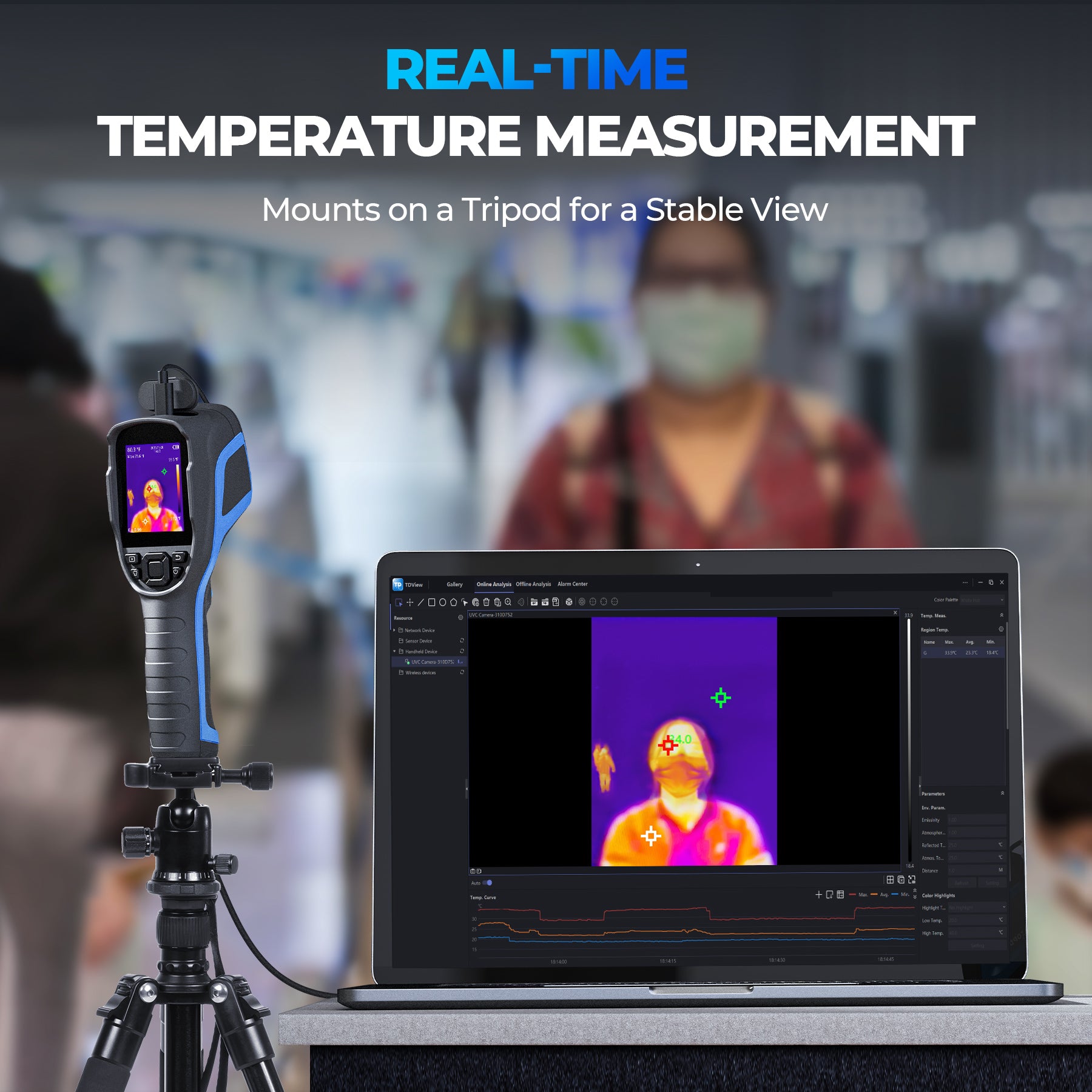

PC Image Analysis and Instant Projection

Professional analysis software allows users to easily save and share diagnostic data on a PC. The TC005 also supports screen projection on a PC as well.

Feature & Benefit 07
Extended Battery Life

A powerful integrated battery allows the TC005 to have a 12-hour runtime.

Feature & Benefit 08

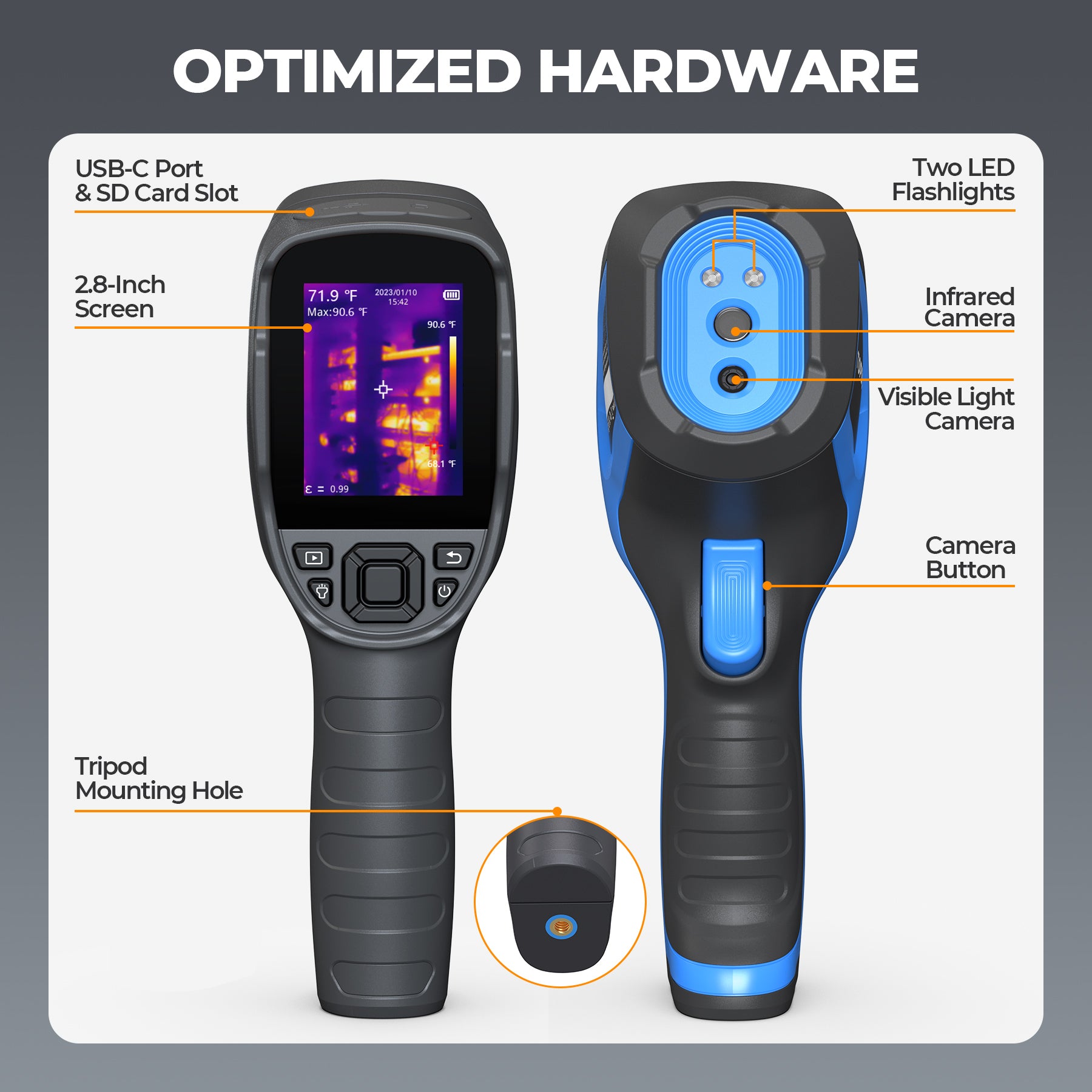

Built-in Fill LED Light

A built-in LED light allows users to record thermal readings without an additional light source.

Feature & Benefit 09
Built for Last

IP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.
